•Excellent corrosion resistance in acidic, alkaline, and chloride-rich environments.
• Mixed Metal Oxide (MMO) coating (typically RuO₂ + IrO₂) provides high catalytic activity and long service life.
• Stable electrochemical performance—low oxygen evolution potential ensures high energy efficiency.
• Customizable substrate geometry and coating thickness for diverse electrolytic processes.
• Environmentally friendly—PbO₂-free and low chlorine evolution by-products.
•Cathodic protection systems (impressed current for pipelines, tanks, offshore structures).
• Water treatment and electrolysis (hypochlorite generation, oxidation).
• Electroplating and electro-winning industries.
• Hydrogen and oxygen generation systems.
• Chemical production requiring stable anodic surfaces.
•Coating thickness and adhesion evaluation.
• Accelerated life testing under simulated operational conditions.
• Electrochemical performance verification (potential, efficiency).
• Corrosion rate and passivation behavior assessment.
• Electrical continuity and surface activation testing.
•Vacuum-sealed or moisture-resistant wrapping for corrosion protection.
• Packed in wooden or plywood cases suitable for export.
• Labeling includes substrate grade, coating composition, batch/lot, and coating thickness.
• Global shipping via courier or sea freight; lead times depend on coating process and volume.

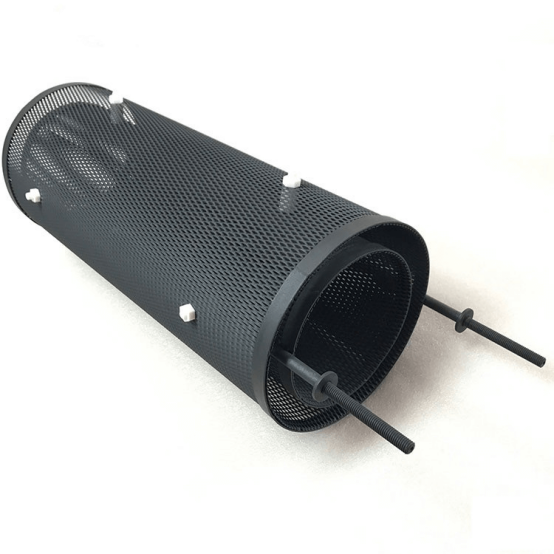

LuminaTitan supplies Mixed Metal Oxide (MMO) anodes engineered for demanding electrochemical environments.
Each anode is based on a corrosion-resistant titanium substrate coated with ruthenium and/or iridium oxides to ensure
excellent catalytic activity, electrical efficiency, and operational durability. Suitable for cathodic protection,
electrolysis, and industrial oxidation systems, LuminaTitan MMO anodes deliver consistent performance and long service life.
| Parameter | Details | Why It Works for You |
| Substrate | Titanium (Gr1 / Gr2) | Corrosion-resistant base for MMO coating; stable and conductive. |
| Coating Composition | RuO₂ + IrO₂ (custom ratios on request) | Combines catalytic activity with long service life. |
| Coating Thickness | 1–10 μm typical | Optimized balance between conductivity and durability. |

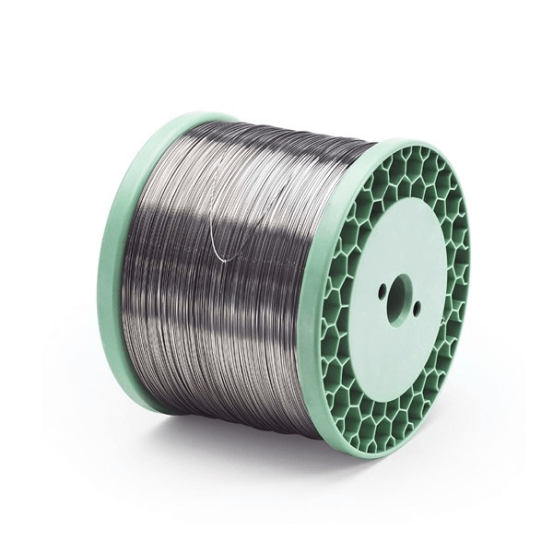

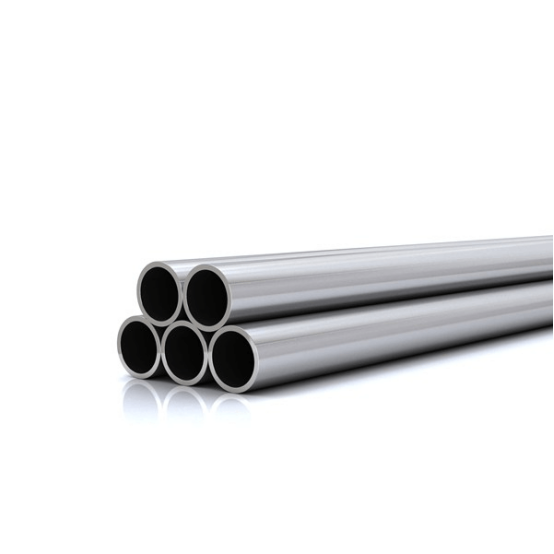

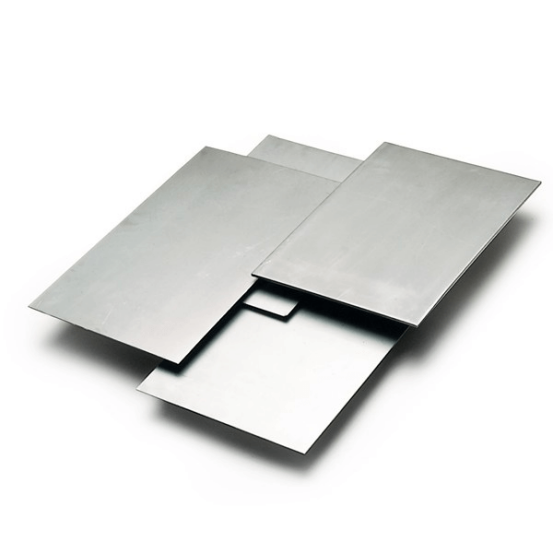

| Shape Options | Plate, mesh, rod, wire, tube, custom design | Adapts to different electrochemical systems. |
| Operating Temperature | Up to 90°C continuous | Stable under prolonged electrolytic conditions. |
| Current Density | ≤ 5000 A/m² (adjustable) | High performance under industrial current loads. |
| Standard | ASTM B265 (substrate), ISO 9001 process control | Ensures consistent quality and performance. |
•Specify substrate grade (Gr1 / Gr2) and coating composition (RuO₂ / IrO₂ or custom).
• Define shape, dimensions, and coating thickness.
• Indicate operating current density and electrolyte type.
• Include desired service life or testing parameters.
• State documentation needs (MTC 3.1, coating certificate, RoHS/REACH compliance).
• Contact: sales@luminatitan.com for technical support or samples.
