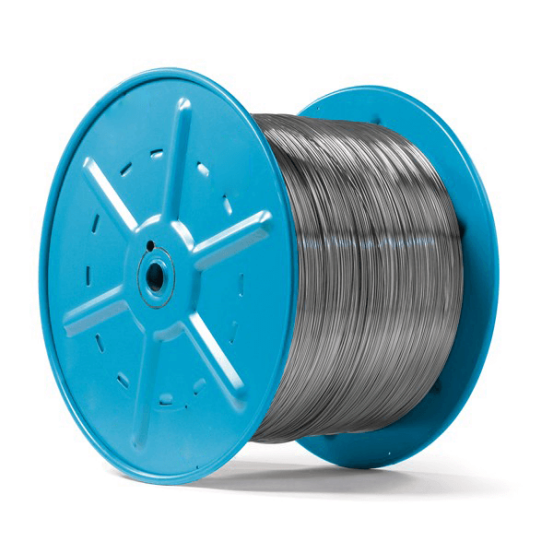

Nitinol (NiTi) superelastic wire coils'; 'Shape‑set NiTi wire straight lengths'; 'Nickel‑titanium wire with specified Af

Nitinol Wire

Key Advantages

SE or SME options: choose constant-force superelastic wire, or shape-set wire for triggered actuation.
Tight Af / R-phase control for consistent performance across heats and lots.
Fine diameters and tight tolerances enable compact mechanisms and orthodontic components.
Clean, oxide-controlled surfaces support bonding, coating and joining processes.
Flexible supply: coils/spools or straight cut lengths; small-batch prototyping available.

Primary Applications

Orthodontic & guide systems (arches, springs, torque elements).
Mini-actuators & robotics (thermal triggers, compact motion).
Fixtures & clamps (constant-force holding, vibration tolerance).
Research & prototyping (function-testing of SE/SME elements).

Testing & Inspection (typical on request)

Transformation temperature testing (DSC or bend-and-free recovery).
Tensile and cyclic fatigue sampling by size/condition.
Surface/defect inspection; eddy-current continuity checks (size-dependent).
Chemical analysis (Ni content, low interstitials).
Dimensional checks: OD, ovality, straightness/coil uniformity.

Send your specifications (grade, size, quantity) — quotation and lead time within 12 hours. Trial orders with flexible MOQ are supported for evaluation and qualification. All materials are supplied with EN 10204 3.1 MTC and full inspection documentation for export compliance.

Product Description

LuminaTitan supplies precision nitinol (nickel-titanium, NiTi) wire engineered for repeatable superelastic (SE) and shape-memory (SME) behavior. Produced under controlled thermo-mechanical processing and inspected in-house, our NiTi wire delivers consistent transformation temperatures, stable cyclic response and corrosion resistance for medical R&D and high-precision industrial applications.

*Regulatory compliance and final device approvals remain the responsibility.

Technical Specifications

Parameter	Details	Why It Works for You
Standard	ASTM F2063 (wrought NiTi wire); ASTM F2516 (SE tensile test)	Industry-recognized specs for NiTi design and verification.
Composition	Ni 54.5–57.0 wt%, balance Ti; low interstitials	Stable SE/SME behavior and corrosion performance.
Form / Function	SE (superelastic) or SME (shape-memory), round wire	Choose constant-force or shape-set actuation.
Diameter Range	0.05–1.00 mm (others on request)	From micro devices to stronger linkages.
Condition	Cold-worked, annealed, or shape-set; straightened available	Tune ductility/strength and recovery.
Surface	Bright oxide-free / black oxide / polished / cleaned	Supports bonding/coating and clean assembly.
Tolerances	Typical ±0.005–±0.02 mm (by diameter)	Tight fit and interchangeability on automated lines.
Transformation (Af)	SE: Af 10–25 °C typical; SME: custom Af targets	Match your in-use temperature window.
Supply Forms	Coils/spools; straight cut lengths (labeled with heat/lot)	Traceable, production-ready packaging.
Documentation	MTC EN 10204 3.1; test reports; RoHS/REACH on request	Supports audits and supplier qualification.

Functional Properties (indicative)

Values depend on grade, diameter and condition; verify to your drawing/specification.

Property	Superelastic (SE)	Shape-Memory (SME)	Notes
Recoverable strain	Up to 6–8%	Up to 4–6% after activation	Small radii possible; size/finish dependent
Ultimate tensile strength	900–1600 MPa	800–1400 MPa	Typical ranges; verify per order
Fatigue behavior	>10^6 cycles at small strain	Application-dependent	Process and surface sensitive
Transformation Af	10–25 °C typical	Custom (e.g., 30–60 °C)	Af window set per order

Packaging & Delivery

Packaging: vacuum/moisture-barrier wrap on spools or straight bundles; export plywood cases.
Labeling: alloy, diameter, condition, Af target (if applicable), heat/lot, coil weight/length, PO.
Shipping: global courier or sea freight; lead times aligned with your production schedule.

Compliance & Handling

RoHS/REACH statements available. Store clean and dry; avoid chloride contamination and contact with carbon steel. Use dedicated tooling to preserve surface integrity. Welding of NiTi requires specialized procedures (e.g., laser); validate joints for your application.

Ordering Checklist

Standard and function: ASTM F2063; SE or SME.
Diameter and tolerance; coil or straight lengths; target coil weight/length.
Condition (cold-worked/annealed/shape-set) and surface (bright/oxide-free/polished).
Transformation Af target and verification method.
Certificates (MTC 3.1) and any special test requirements.
Samples & technical support: sales@luminatitan.com
