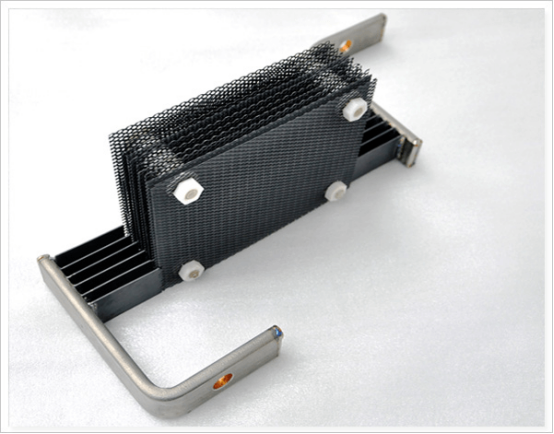

Ruthenium Oxide (RuO₂) Titanium Anode
Key Advantages
High corrosion resistance in acidic/alkaline electrolytes; stable at elevated temperature.
Low overpotential for chlorine/oxygen evolution; uniform current distribution.
Custom shapes: mesh, plate, rod or wire; coating thickness tuned to duty cycle.
Traceable heats and coating records; MTC EN 10204 3.1 on request.
Primary Applications
Water treatment & AOP systems
Chlor-alkali and hypochlorite generation
Electroplating / pickling aids
Hydrogen/oxygen generation (alkaline)
Testing (typical)
Coating thickness & adhesion; accelerated life in simulated electrolyte
Corrosion/passivation behavior; surface activation checks
Electrical continuity & coating uniformity
Packaging & Delivery
Vacuum/moisture-barrier wrap, export plywood cases
Labels: substrate grade, coating type/thickness, lot, dimensions
Global courier or sea freight; lead times aligned with your schedule
Technical Specifications
Substrate: Titanium Gr1/Gr2
Coating: RuO₂ (optionally RuO₂/IrO₂ mixed oxide)
Thickness: 1–10 µm typical
Form: Plate / mesh / rod / wire / custom
Current density: up to 5,000 A/m² (application-dependent)
Standards: ASTM B265 (substrate); ISO 9001 process control
LuminaTitan supplies advanced Ruthenium Anodes for demanding electrochemical applications.
Each anode combines a titanium substrate with a ruthenium oxide (RuO₂) or RuO₂/IrO₂ coating,
delivering high catalytic performance, corrosion resistance, and excellent stability under long-term operation.
Ideal for chemical production, wastewater oxidation, and hydrogen systems.
| Parameter | Details | Why It Works for You |
| Substrate | Titanium (Gr1 / Gr2) | Provides corrosion resistance and dimensional stability. |
| Coating | RuO₂ or RuO₂/IrO₂ | High catalytic activity and long service life. |
| Coating Thickness | 1–10 μm typical | Optimized for durability and efficiency. |
| Shape Options | Plate, mesh, rod, wire | Custom-fit for specific electrolytic applications. |
| Operating Temp. | Up to 90°C continuous | Stable under demanding electrolysis conditions. |
| Current Density | ≤ 5000 A/m² (customizable) | Ensures efficient energy use. |
| Standard | ASTM B265, ISO 9001 | Global industrial compliance and traceability. |
Ordering Checklist
Substrate grade and coating type (RuO₂ or mixed)
Shape/dimensions, coating thickness, target current density
Electrolyte type & temperature; lifetime expectations
Documentation: MTC 3.1, coating certificate, RoHS/REACH
