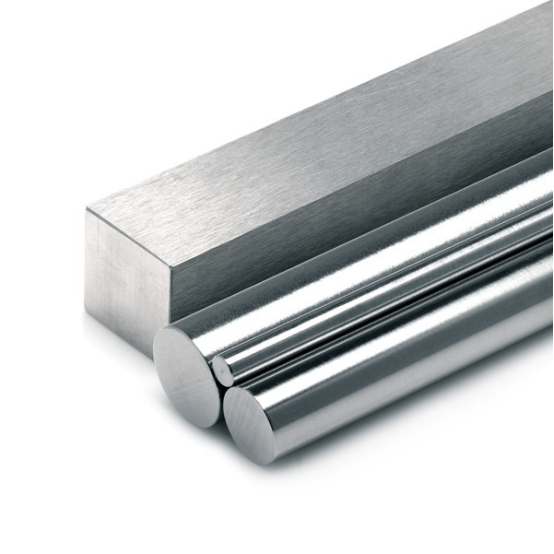

Titanium Bar

Key Advantages

Precision customization: diameter 3–600 mm, round/square/hex; tight dimensional tolerances for automated lines.
High strength‑to‑weight ratio and excellent corrosion resistance across grades (Gr1–Gr5/Gr7/Gr12/Gr23).
Process control & documentation: batch traceability with MTC EN 10204 3.1 and inspection reports.
Flexible supply: cut‑to‑length, random lengths or bars to drawing; small‑batch sampling available.

Primary Applications

Aerospace: fasteners, frames, landing gear components where weight reduction is critical.
Medical: biocompatible bars for instruments, fixtures and implantable hardware (final device approvals by buyer).
Chemical processing: corrosion‑resistant shafts, valve stems and structural parts in acidic/alkaline media.

Testing (typical)

Ultrasonic flaw detection; eddy current checks (size‑dependent).
Mechanical tests: tensile, yield, elongation (per order/grade).
Chemical analysis per ASTM; low interstitial control (O, N, H).
Microstructure evaluation; grain size and alpha‑case control.

Packaging & Delivery

Packaging: plastic sleeves + corrosion‑inhibiting wrap; export plywood cases; ends protected.
Labeling: grade, diameter, condition, heat/lot, length/pcs, PO.
Shipping: global courier or sea freight; lead times aligned with your schedule.

Product Description

Premium titanium bars engineered for aerospace, medical and chemical applications. Produced under tightly controlled processes and verified in-house, our round, square and hexagonal bars provide a high strength-to-weight ratio, dependable corrosion resistance and stable mechanical behavior across lots. Diameters 3–600 mm with annealed/hot-worked/cold-worked conditions and black/pickled/sand-blasted/polished finishes available; heat/lot traceability (MTC 3.1) and inspection reports on request.

For customers requiring matched materials across assemblies or multi-component builds, we also supply Titanium Rod, Titanium Wire, Titanium Plate, Titanium Sheet, and Titanium Tubing produced to the same ASTM and AMS standards. These products allow you to consolidate vendors and maintain consistent mechanical and chemical performance throughout your project.

Technical Specifications

Parameter	Details	Why It Works for You
Standards	ASTM B348, ASTM F67, AMS 4928, ASTM F136, AMS 2631B	Aligns with global quality benchmarks; simplifies qualification.
Grades	Gr1, Gr2, Gr4, Gr5, Gr7, Gr12, Gr23	Balances corrosion resistance and strength across applications.
Diameter	3 – 600 mm (tighter ranges on request)	Covers fine pins up to heavy structural bars.
Shapes	Round, square, hexagonal (others on request)	Supports bolts, shafts, fixtures and custom profiles.
Condition	Annealed / Hot‑rolled / Cold‑worked / Quenched (codes: M/R/Y/C)	Tune ductility vs. strength for machining and service loads.
Surface	Black / Pickled / Sand‑blasted / Polished	Choose finish for corrosion performance and fit/finish.
Supply Lengths	Random or cut‑to‑length; ends faced/Chamfered on request	Reduces downstream machining and waste.
Documentation	MTC EN 10204 3.1; inspection reports; RoHS/REACH	Supports audits and supplier qualification.

Chemical Composition (Max. Weight %)

Grade	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	—	—	—	—	—	bal
Gr2	0.03	0.08	0.015	0.30	0.25	—	—	—	—	—	bal
Gr4	0.05	0.08	0.015	0.30	0.35	—	—	—	—	—	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5–6.75	3.5–4.5	—	—	—	bal
Gr7	0.08	0.08	0.015	0.30	0.25	—	—	—	0.12–0.25	—	bal
Gr12	0.08	0.08	0.015	0.30	0.25	—	—	—	0.2–0.4	0.6–0.9	bal
Gr23	0.03	0.08	0.012	0.25	0.13	5.5–6.5	3.5–4.5	—	—	—	bal

Mechanical Properties (Annealed, indicative)

Grade	Tensile (MPa, min)	Yield (MPa, min)	Elongation (%)
Gr1	240	138	24
Gr2	345	275	20
Gr3	450	380	18
Gr4	550	483	15
Gr5	895	828	10
Gr7	345	275	20
Gr9	620	438	15
Gr12	438	345	18

Ordering Checklist

Standard & grade: e.g., ASTM B348; Gr1/Gr2/Gr5/Gr7/Gr12/Gr23.
Dimensions & tolerance: diameter, length, tolerance class; round/square/hex.
Condition/temper: annealed / cold‑worked / hot‑rolled; hardness or strength targets.
Surface/finish: pickled / polished / sand‑blasted / black; roughness target if any.
Testing & NDT: ultrasonic / eddy current; mechanical sampling; chemical analysis.
Documentation: MTC EN 10204 3.1; inspection reports; RoHS/REACH statements.
Quantity & packaging: lot size, cut‑to‑length, end‑protection, export cases.
Logistics & terms: target lead time; Incoterms; destination & preferred carrier.
Drawings & notes: any machining/cutting, marking, or special certifications.
