Key Advantages
– Corrosion resistance in chloride and oxidising media; suitable for chemical and marine service (grade dependent).
– Clean weldability and low interstitials (per specification) support sanitary/medical assemblies.
– Tight dimensional tolerances for reliable fit-up on automated lines and orbital welding.
– Multiple end types (butt-weld, socket-weld, threaded) to match existing systems.
– Traceable batches; MTC EN 10204 3.1 available for audits and supplier qualification.
Primary Applications
– Chemical process lines and heat-exchanger manifolds.
– Medical/biotech fluid paths and clean-room utilities.
– Seawater service, desalination skids and chlorine-bearing environments (grade dependent).
– Aerospace ground support, test stands and lightweight corrosion-resistant pipework.
Testing
– Visual and dimensional checks (OD/ID, wall, ovality, squareness).
– NDT on request: dye-penetrant, ultrasonic; hydrostatic or pneumatic proof testing per drawing.
– Chemical composition verification; mechanical sampling (tensile/yield/elongation) by heat.
– Surface and cleanliness inspection for weld ends (Ra targets when specified).
Packaging & Delivery
– End-cap protection; desiccant/film wrap; export plywood cases.
– Each box labelled with grade, size, schedule/class, heat/lot and PO for traceability.
– Global courier or sea freight; lead times aligned with your production schedule.

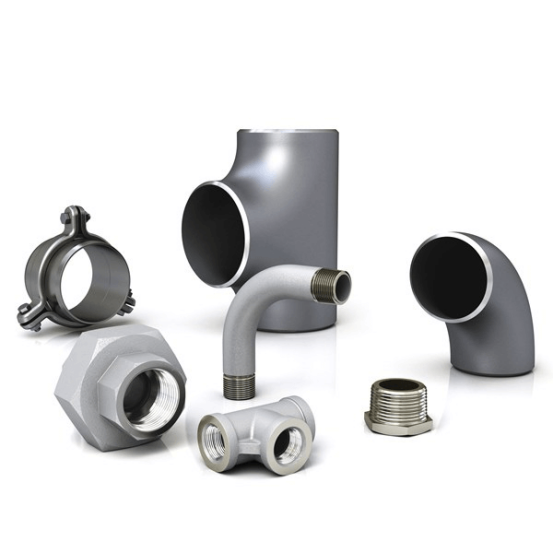

Premium titanium pipe fittings engineered for chemical, medical and industrial systems. LuminaTitan supplies elbows, tees, reducers, caps and couplings manufactured under controlled processes and verified in-house to deliver corrosion resistance, clean weldability and consistent mechanical behaviour.
Technical Specifications
| Parameter | Details / Why It Works |
| Standards (by type) | Butt-weld: ASME B16.9 / MSS SP-43 (light-wall); Socket-weld/Threaded: ASME B16.11; Flare/Custom per drawing |
| Grades | Gr2 (CP Ti), Gr7 (Ti-Pd for chlorine media), Gr12 (Ti-Mo-Ni for crevice corrosion), Gr5 (Ti-6Al-4V) on request |
| Sizes | DN15 — DN300 (1/2″ — 12″); schedules per pipe spec |
| End Types | BW (bevelled), SW, NPT/BSPT threaded; sanitary on request |
| Surface / Finish | Bevelled/cleaned ends; pickled/polished; Ra targets per print |
| NDT / QA | PMI/chem check; dye-penetrant; ultrasonic (as req.); MTC 3.1 |
Chemical Composition (Max. Weight %)
| Grade | N | C | H | Fe | O | Al | V | Mo | Ni | Ti |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | — | — | — | — | Rem. |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | — | — | — | 0.12–0.25 | Rem. |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | — | — | 0.2–0.4 | 0.6–0.9 | Rem. |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5–6.75 | 3.5–4.5 | — | — | Rem. |
Mechanical Properties (typical)
| Grade | UTS (MPa) | YS (0.2%, MPa) | Elongation (%) |
| Gr2 | 345 | 275 | 20 |
| Gr7 | 345 | 275 | 20 |
| Gr12 | 438 | 345 | 18 |
| Gr5 (mill-annealed) | 895 | 828 | 10 |
Ordering Checklist
– Type/standard (BW: ASME B16.9 / SP-43; SW/THD: ASME B16.11).
– Grade (Gr2/Gr7/Gr12/Gr5) and medium/temperature notes.
– Size (DN/NPS), schedule/class, end type (BW bevel, SW, NPT/BSPT).
– Surface/finish (pickled/polished) and Ra target if required.
– Tests/docs (MTC 3.1, PMI, NDT, hydro).
