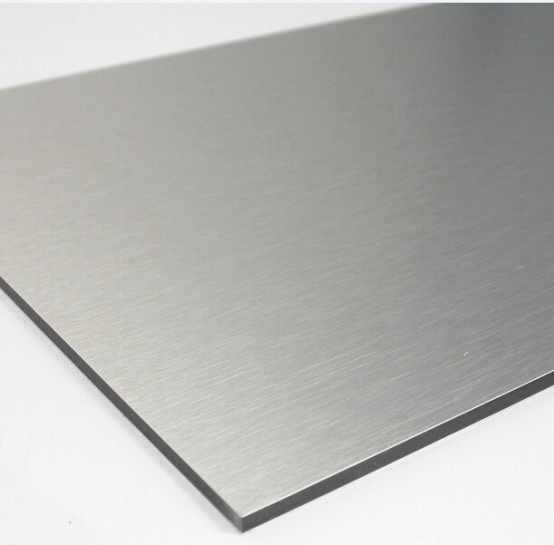

Titanium Plate

Primary Applications

Chemical Processing: Corrosion – resistant tanks, liners—withstands acidic/alkaline media (except HF).
Nuclear Industry: Reactor structural parts—low neutron absorption, high – temp stability.
High – Tech Manufacturing: Precision shields, frames—supports thermal management and structural integrity.

Quality Assurance

Chemical composition testing (ASTM standards)
Mechanical properties verification
ISO Quality Management System compliance

Packaging & Delivery

Packaging: Wooden/plywood cases or custom solutions—safeguards plates during transit.
Shipping: Global delivery via trusted couriers. Contact us for lead times—we align with your production schedule.

Product Description

LuminaTitanium provides high – quality Titanium Plate, engineered to ASTM B265/AMS 4911/AMS 4918/ASTM F67/ASTM F136 standards. With excellent corrosion resistance, high strength – to – weight ratio, and customizable specs, it suits aerospace, medical, and chemical industrial applications.

Technical Specifications

Parameter	Details	Why It Works for You
Standard	ASTM B265, AMS 4911, AMS 4918, ASTM F67, ASTM F136	Aligns with global industrial quality—ensures reliability in critical applications.
Grade	Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr23	Delivers consistent corrosion resistance and mechanical properties.
Thickness	0.5mm – 80mm	Suits diverse industrial needs—from thin shields to thick structural plates.
Width	10mm – 2500mm	Custom – fit for your project dimensions—no secondary processing hassle.
Technology	Hot – Rolled, Cold – Rolled, Hot forging, Machining	Enables precise dimension control and mechanical property tuning.
Condition	Cold rolled (Y), Hot rolled (R), Annealed (M), Quenching (C)	Offers flexibility in mechanical properties (ductility, strength).
Surface	Pickling, Polished, Black	Ensures smooth processing, reduces defects in end – products.

Key Advantages

Precision Customization: Need specific grades (Gr1/Gr23), conditions (annealed/cold rolled), or surface finishes? We tailor titanium plates for your use—chemical plant corrosion – resistant liners, nuclear reactor components, high – tech device shields, etc. Small batches welcome for testing.
Quality Assurance: Undergo strict quality control (chemical, mechanical, surface). Low impurity levels (controlled element composition)—ensures reliability in harsh environments (corrosive media, radiation).
Industry – Critical Performance: High corrosion resistance, thermal stability—supports chemical, nuclear, and advanced manufacturing industries.

Chemical Composition (Max. Weight %)

Grade	N (%)	C (%)	H (%)	Fe (%)	O (%)	Al (%)	V (%)	Pa (%)	Mo (%)	Ni (%)	Ti (%)
Gr1	0.03	0.08	0.015	0.20	0.18	—	—	—	—	—	Remaining
Gr2	0.03	0.08	0.015	0.30	0.25	—	—	—	—	—	Remaining
Gr3	0.05	0.08	0.015	0.30	0.35	—	—	—	—	—	Remaining
Gr4	0.05	0.08	0.015	0.40	0.40	—	—	—	—	—	Remaining
Gr5	0.05	0.08	0.015	0.40	0.20	5.5 – 6.75	3.5 – 4.5	—	—	—	Remaining
Gr7	0.03	0.08	0.015	0.30	0.25	—	—	—	0.12 – 0.25	—	Remaining
Gr9	0.03	0.08	0.015	0.25	0.15	2.5 – 3.5	2.0 – 3.0	—	—	—	Remaining
Gr12	0.03	0.08	0.015	0.30	0.25	—	—	—	0.2 – 0.4	0.6 – 0.9	Remaining
