Titanium Rod

Primary Applications

Aerospace: Structural components—high strength – to – weight ratio, low density.
Medical Implants: Biocompatible rods—supports tissue integration, corrosion – resistant.
Chemical Processing: Corrosion – resistant parts—withstands acidic/alkaline media.

Testing

Corrosion test
Eddy Current test
Mechanical test
Microstructure test

Packaging & Delivery

Packaging: Custom solutions (protective coatings, wooden cases)—safeguards rods during transit.
Shipping: Global delivery via trusted couriers. Contact us for lead times—we align with your production schedule.

Product Description

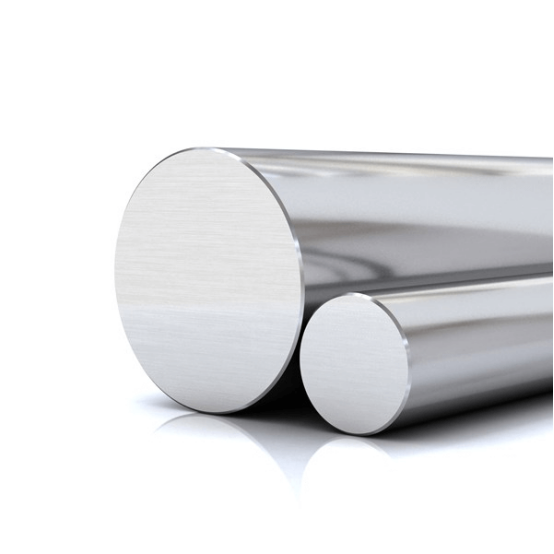

LuminaTitanium provides high – performance Titanium Rod, engineered to ASTM B348/F67/AMS 4928/F136 standards. With excellent corrosion resistance, high strength – to – weight ratio, and customizable specs, it suits aerospace, medical, and chemical industrial applications.

Technical Specifications

Parameter	Details	Why It Works for You
Size (Dia.)	3mm – 600mm	Covers diverse industrial needs—from fine rods to thick structural bars.
Material Grade	GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR23	Delivers consistent corrosion resistance and mechanical properties.
Standard	ASTM B348, ASTM F67, AMS 4928, ASTM F136	Aligns with global industrial quality—ensures reliability in critical applications.
Surface	Black, Pickling, Sand – blasting, Polished	Suits aesthetic and functional needs (corrosion resistance, smoothness).
Condition	Cold rolled (Y), Hot rolled (R), Annealed (M), Quenching (C)	Offers flexibility in mechanical properties (ductility, strength).
Shape	Square, Round, Hexagonal, etc.	Adapts to unique system designs (hexagonal for bolts, round for shafts).

Key Advantages

Precision Customization: Need specific diameters (3 – 600mm), shapes (hexagonal/square), or conditions? We tailor titanium rods for your use—aerospace structural parts, medical implants, chemical processing components, etc. Small batches welcome for testing.
Quality Assurance: Undergo strict testing (corrosion, eddy current, mechanical, microstructure). Low impurity levels (controlled element composition)—ensures reliability in harsh environments (corrosive media, high temps).
Industry – Critical Performance: High strength – to – weight ratio, corrosion resistance—supports aerospace, medical, and chemical industries.

Chemical Composition (Max. Weight %)

Grade	N (%)	C (%)	H (%)	Fe (%)	O (%)	Al (%)	V (%)	Pa (%)	Mo (%)	Ni (%)	Ti (%)
Gr1	0.03	0.08	0.015	0.20	0.18	—	—	—	—	—	Remaining
Gr2	0.03	0.08	0.015	0.30	0.25	—	—	—	—	—	Remaining
Gr3	0.05	0.08	0.015	0.30	0.35	—	—	—	—	—	Remaining
Gr4	0.05	0.08	0.015	0.40	0.40	—	—	—	—	—	Remaining
Gr5	0.05	0.08	0.015	0.40	0.20	5.5 – 6.75	3.5 – 4.5	—	—	—	Remaining
Gr7	0.03	0.08	0.015	0.30	0.25	—	—	—	0.12 – 0.25	—	Remaining
Gr9	0.03	0.08	0.015	0.25	0.15	2.5 – 3.5	2.0 – 3.0	—	—	—	Remaining
Gr12	0.03	0.08	0.015	0.30	0.25	—	—	—	0.2 – 0.4	0.6 – 0.9	Remaining

Mechanical Properties (Annealed State)

Grade	Tensile Strength (min, MPa)	Yield Strength (min, MPa)	Elongation (min, %)
Gr1	240	138	24
Gr2	345	275	20
Gr3	450	380	18
Gr4	550	483	15
Gr5	895	828	10
Gr7	345	275	20
Gr9	620	438	15
Gr12	438	345	18
